CI/CD Overview

CI/CD Overview

This page summarizes the key steps of the CI/CD workflows that run when a pull request is opened against master and when changes are merged into master. For a deeper dive into how these workflows are implemented, see the Continuous Deployment section.

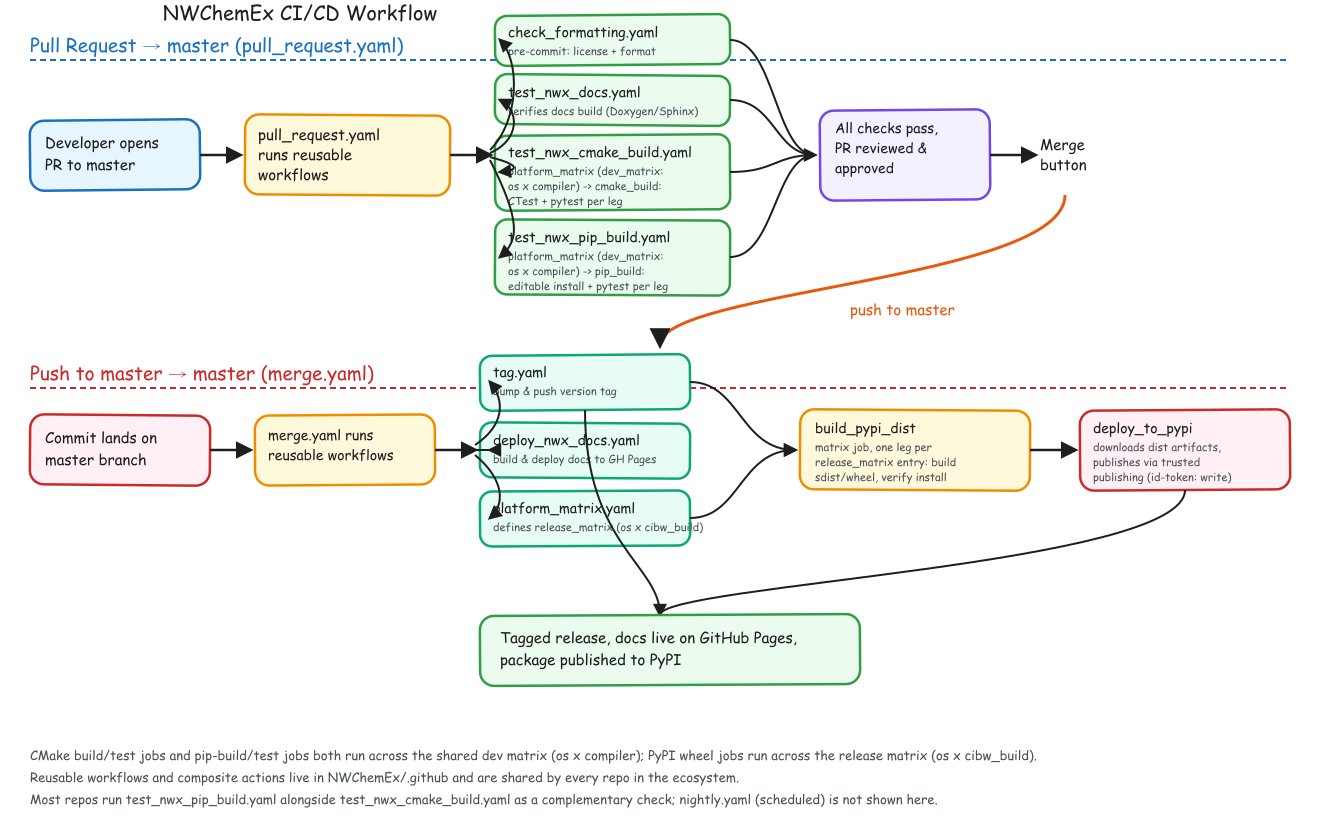

Workflow Summary

Key steps of the pull request and merge workflows.

Pull Request Workflow (pull_request.yaml)

Triggered whenever a PR is opened (or updated) against master:

  1. A developer opens a PR targeting master.
  2. GitHub Actions runs the reusable workflows defined in NWChemEx/.github:
    • check_formatting.yaml – runs pre-commit to check license headers and formatting.
    • test_nwx_docs.yaml – verifies the repo’s documentation builds (Doxygen and/or Sphinx).
    • test_nwx_cmake_build.yaml – pulls the shared dev matrix (OS x compiler) from platform_matrix.yaml, then, for each leg, configures and builds the repo with CMake and runs its CTest (C++) and, optionally, pytest (Python) suites.
    • test_nwx_pip_build.yaml – runs across the same dev matrix, but verifies the repo’s actual pip install path (via pyproject.toml, e.g. scikit-build-core for the CMake-backed repos) works end-to-end, then runs the pytest suite against that editable install. Most repos with a pyproject.toml run this alongside test_nwx_cmake_build.yaml as a complementary check, since the two exercise different install paths; a pure-Python repo with no CMakeLists.txt passes run_cmake_tests: "false".
  3. Once all checks pass and the PR has been reviewed and approved, it is merged into master.

Merge Workflow (merge.yaml)

Triggered whenever a commit lands on master (i.e., right after a PR merges):

  1. The commit lands on master.
  2. GitHub Actions runs the reusable workflows defined in NWChemEx/.github:
    • tag.yaml – bumps and pushes the version tag for the new commit.
    • deploy_nwx_docs.yaml – builds and publishes the repo’s documentation to GitHub Pages.
    • platform_matrix.yaml – defines the release matrix (OS x cibw_build) used for packaging.
  3. build_pypi_dist runs as a matrix job, one leg per entry in the release matrix (depends on tag-commit and platform_matrix). Each leg builds a source distribution and/or a wheel (via cibuildwheel for compiled packages), then verifies the wheel installs cleanly, and uploads it as a build artifact.
  4. deploy_to_pypi downloads the artifacts from every leg and publishes them using PyPI’s trusted publishing (id-token: write, no stored API token).
  5. The result is a tagged release, with documentation live on GitHub Pages and the package published to PyPI.

The CMake and pip build/test jobs run on bare runners using a native (apt on Linux, Homebrew on macOS) compiler toolchain set up per matrix leg; the docs build/deploy jobs run in a container built from ghcr.io/nwchemex/nwx_buildenv:latest, which pre-installs the compilers, math libraries, MPI, and other dependencies shared across the NWChemEx stack. The PyPI packaging jobs also run on bare runners (plus, for compiled packages, cibuildwheel’s own manylinux/macOS build containers) since they need to produce portable wheels rather than use the ambient dev environment.

A nightly.yaml workflow (scheduled, not tied to PRs or merges) also exists in each repo but is not covered here.
