Writing Integration Tests for NWChemEx

NWChemEx is a modular ecosystem designed with separation of concerns as a key design point. An example of this separation can be found with the SCF, integrals, and ChemCache libraries. These components of NWX are linked by SimDE and are intended to be used together, but are not explicitly required for the development of one another (see the figure below). The unit tests for these libraries are intended to ensure basic functionality and correctness, which can usually be accomplished with simple test data that allow the unit tests to run quickly.

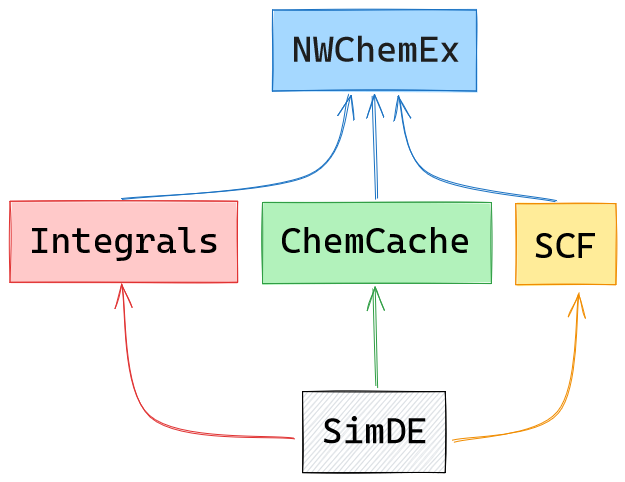

A simplified diagram of the NWChemEx dependency structure.

With that said, the initial development and testing of the SCF becomes very awkward when one is unable to easily acquire real integrals for real molecular systems. Additionally, changes to the integrals code could have deleterious effects on the SCF code, which we would like to detect before merging. For these (and other) reasons, it can be useful to implement integration tests to ensure the continued interoperability of the isolated components of the NWX stack. Because the tests are built on top of the plugins, it is simple to include NWChemEx itself as a dependency of the test. This way, changes at the plugin level can be screened to guarantee that they don’t break interoperability with the others.

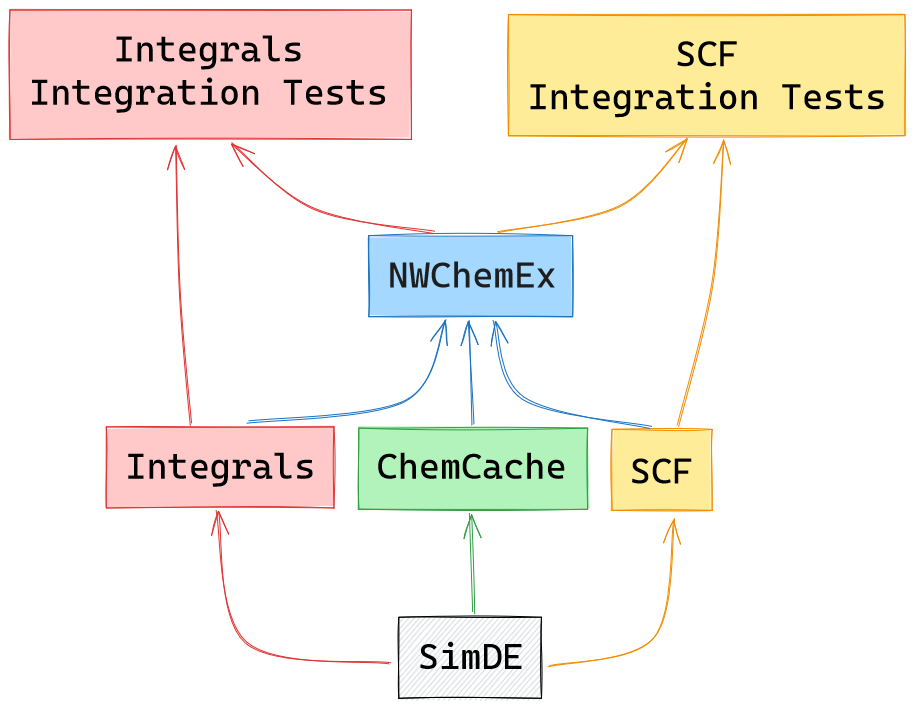

A diagram illustrating the relationship between the integration tests, the library they test, and the top-level NWChemEx library.

The Self-Override Rule

Because an integration test for a repo (call it R) works by depending on NWChemEx, and NWChemEx itself depends back on R, it is easy to accidentally build and test the wrong copy of R – the one the ecosystem drags in, rather than the working tree the test is meant to exercise. This happened in practice: SCF’s integration-testing CI job installed the whole ecosystem via pip install nwchemex, which pulled in the published nwchemex-scf alongside it. On macOS, no wheel exists for nwchemex-scf, so pip source-built the published sdist – which had gone stale relative to chemist master and no longer compiled. The workaround was to mark the leg allow_macos_failure, silencing exactly the signal integration testing exists to produce.

The rule that prevents this, and that every mechanism on this page exists to enforce, is one sentence:

An integration test for repo R builds R from the working tree and pulls every other ecosystem member from its released copy. R’s own copy inside the ecosystem is overridden, never installed, never fetched.

Where the Ecosystem Comes From

An integration test needs “the rest of NWChemEx” without recompiling it. NWXCMake resolves each ecosystem dependency (chemist, pluginplay, simde, integrals, chemcache, nux, scf, nwchemex, …) with nwx_ecosystem_dependency(), which tries these sources in order and stops at the first that matches:

The repo under test. If the dependency’s name matches the top-level project’s own name (recorded in NWX_TOP_PROJECT_NAME), it resolves to the target this build already defined – i.e. the working tree. This branch runs before every other one, including the installed-wheel branch below: if it ran later, an integration-testing build (which has the ecosystem’s wheels installed by design) would resolve the repo under test to its own published copy and silently test the wrong code. If no matching target exists yet, this is a configure-time error rather than a silent fallback – see “Ordering Matters” below.
Already resolved. Some earlier dependency in this same configure already produced a target with this name.
A local source directory, via CMake’s own FETCHCONTENT_SOURCE_DIR_<NAME> – see “Developing Against a Local Sibling” below.
An installed wheel, found in the active venv’s site-packages. Every ecosystem repo publishes a wheel carrying its headers, its shared libraries, and a <name>Config.cmake, so this reuses a released build instead of re-cloning and recompiling the entire stack for every integration test. This is what makes integration testing affordable: only the repo under test compiles.
git master, fetched with FetchContent and built from source. This is also the fallback used when no wheel is installed at all (e.g. a plain cmake -B build -DINTEGRATION_TESTING=ON with no ecosystem installed first).

Setting NWX_ECOSYSTEM_FROM_SOURCE=ON skips branch 4 entirely, so every ecosystem member is built from git master instead of resolved from a wheel. Reach for this only if a released wheel turns out to be unusable for some class of test (see “A Note on ABI” below) – it trades the speed of the wheels model for tip-of-tree coverage of the whole stack.

Ordering Matters

Branch 1 above requires that the repo under test’s own CMake target already exists by the time its ecosystem dependency is resolved. Concretely: the get_dependencies(nwchemex) call that pulls in the ecosystem (transitively, through NWChemEx’s own CMakeLists.txt) must come after the nwx_library() call that defines this project’s own target. Getting this backwards used to produce a confusing “duplicate target” error; it is now a FATAL_ERROR that names the rule directly.

Wiring It Up With CMake

The following block, modeled on SCF’s own CMakeLists.txt, adds integration testing to a project that already builds unit tests with catch2_tests_from_dir() and nwx_python_test():

if(BUILD_TESTING)
    # ... unit test setup, including nwx_library() for this project's own
    # target, comes first ...

    if(INTEGRATION_TESTING)
        # Pulls in the ecosystem (see "Where the Ecosystem Comes From"
        # above). Must come after nwx_library() -- see "Ordering Matters".
        get_dependencies(nwchemex)

        catch2_tests_from_dir(
            "test_integration_${PROJECT_NAME}"
            "tests/cxx/integration_tests"
            ${PROJECT_NAME} ${NWX_DEP_TARGET_nwchemex}
            PRIVATE_INCLUDES "cxx/src" "cxx/src/${PROJECT_NAME}"
        )

        nwx_python_test(
            py_integration_test_${PROJECT_NAME}
            "${CMAKE_CURRENT_LIST_DIR}/tests/python/integration_tests/run_integration_tests.py"
        )
    endif()
endif()

INTEGRATION_TESTING is declared (default OFF) by set_default_nwx_options, alongside BUILD_TESTING and BUILD_PYBIND11_BINDINGS, so no project needs to declare it itself.

Because every ecosystem member other than the repo under test arrives as an installed wheel, no manual PYTHONPATH/ENVIRONMENT plumbing is needed to make import nwchemex (or any other sibling) work under CTest – it’s importable from site-packages like any other installed package. nwx_python_test() already prepends the repo under test’s own freshly-built extension ahead of that.

Wiring It Up With Pip

An editable install (pip install -e ".[dev]") sets DEVELOPER_SETUP=ON via each repo’s [[tool.scikit-build.overrides]] block, and set_default_nwx_options force-enables both BUILD_TESTING and INTEGRATION_TESTING whenever DEVELOPER_SETUP is on. So a developer who wants integration tests locally needs only:

pip install nwchemex --no-deps
pip install nwchemex-simde nwchemex-integrals nwchemex-chemcache nwchemex-nux \
    nwchemex-friendzone[molssi]   # every ecosystem member except this repo
pip install -e ".[dev]"
pytest -v

The middle step is exactly what CI’s install_nwx_ecosystem action automates (see below) – it reads nwchemex’s own dependency metadata so the sibling list can never drift out of sync by hand.

Wiring It Up in CI

Both shared reusable workflows accept an integration_testing input:

test_cmake_build:
    uses: NWChemEx/.github/.github/workflows/test_nwx_cmake_build.yaml@master
    with:
      run_python_tests: "true"
      python_version: "3.12"   # match the ecosystem's published wheel ABI
      integration_testing: "true"

test_pip_build:
    uses: NWChemEx/.github/.github/workflows/test_nwx_pip_build.yaml@master
    with:
      python_version: "3.12"
      integration_testing: "true"

Setting it installs the ecosystem (minus this repo’s own published copy) via the install_nwx_ecosystem composite action, then asserts that this repo’s own distribution – if installed at all – carries a direct_url.json, i.e. came from the working tree rather than from an index. That assertion is the safety net for the self-override rule: whatever route a future bug takes (a version bump makes this repo newly satisfy some other sibling’s dependency, a workflow gets reordered, …), it fails loudly instead of silently testing the published copy.

Pin python_version to 3.12 (or whatever platform_matrix.yaml’s release_matrix currently publishes wheels for) whenever integration_testing is set – under a newer ambient Python, install_nwx_ecosystem falls back to slow, and possibly failing, source builds of the siblings instead of installing their prebuilt wheels.

Writing the Tests

Integration tests are written the same way unit tests are (see Writing Unit Tests), just with the wider ecosystem available as submodules. A Python example, testing an SCF module against integrals supplied by the rest of NWChemEx:

import unittest

import nwchemex
from pluginplay import ModuleManager
from simde import AOEnergy, MolecularBasisSet, MoleculeFromString


class TestIntegration(unittest.TestCase):
    def setUp(self):
        self.mm = ModuleManager()
        nwchemex.load_modules(self.mm)  # also loads this repo's own modules

    def test_scf_module(self):
        key = "SCF Module"  # the module under test

        molecule_pt = MoleculeFromString()
        basis_set_pt = MolecularBasisSet()
        energy_pt = AOEnergy()

        mol = self.mm.run_as(molecule_pt, "NWX Molecules", "water")
        bs = self.mm.run_as(basis_set_pt, "sto-3g", mol)

        # Wire in a submodule supplied by another ecosystem member.
        submod_key = "A submodule of my SCF module"
        integral_key = "Some integral needed to run SCF"
        self.mm.change_submod(key, submod_key, integral_key)

        egy = self.mm.run_as(energy_pt, key, mol, bs)
        self.assertAlmostEqual(egy, -74.94208027122616, places=6)

The C++ counterpart follows the same shape as the C++ unit tests, but initializes and finalizes through this project’s own module (so MPI/module state is set up once per test binary) and pulls in the ecosystem headers it needs directly:

#include <catch2/catch_all.hpp>
#include <chemcache/chemcache.hpp>
#include <integrals/integrals.hpp>
#include <nux/nux.hpp>
#include <scf/scf.hpp>

template<typename FloatType>
pluginplay::ModuleManager load_modules() {
    pluginplay::ModuleManager mm;
    chemcache::load_modules(mm);
    integrals::load_modules(mm);
    nux::load_modules(mm);
    scf::load_modules(mm);
    // ... wire submodules as needed ...
    return mm;
}

TEST_CASE("SCFDriver") {
    auto mm = load_modules<double>();
    // ... run a module through mm, assert on the result ...
}

Developing Against a Local Sibling

To work on two repos together before either has published a release that reflects the change – e.g. a Chemist API change that SCF’s integration tests need to exercise – point the consuming repo’s configure at the sibling’s local checkout instead of waiting on a release:

cmake -S . -B build -DINTEGRATION_TESTING=ON \
    -DFETCHCONTENT_SOURCE_DIR_CHEMIST=/path/to/local/Chemist

This takes priority over both the installed-wheel and git-master branches (see “Where the Ecosystem Comes From” above), so the sibling is built from that exact checkout instead.

A Note on ABI

Because ecosystem wheels are built by cibuildwheel with its own toolchain, a C++ integration test executable compiled locally (or in CI’s gcc-14/clang-18 legs) links against libraries built with a potentially different compiler. Python integration tests are unaffected – each extension module is already self-contained and ABI-bound at wheel-build time – but a C++ integration test that fails to link or crashes at runtime against wheel-provided libraries, where the same test passes with NWX_ECOSYSTEM_FROM_SOURCE=ON, is worth suspecting as an ABI mismatch rather than a real regression.
